easi-lift changing bench
$10,996.00 – $12,422.00
Description
Most height-adjustable changing tables require fitting to both the wall and floor. The Easi-Lift Changing Table / Bench has been designed to require wall fixing only. This is particularly beneficial where the type of floor, surface pipe work or cabling prevent floor installation.
The Easi-Lift Changing Bench has a great travel range to meet varying needs and the bench can easily be set to a safe and suitable working height to help prevent the risk of back injury to the carer.

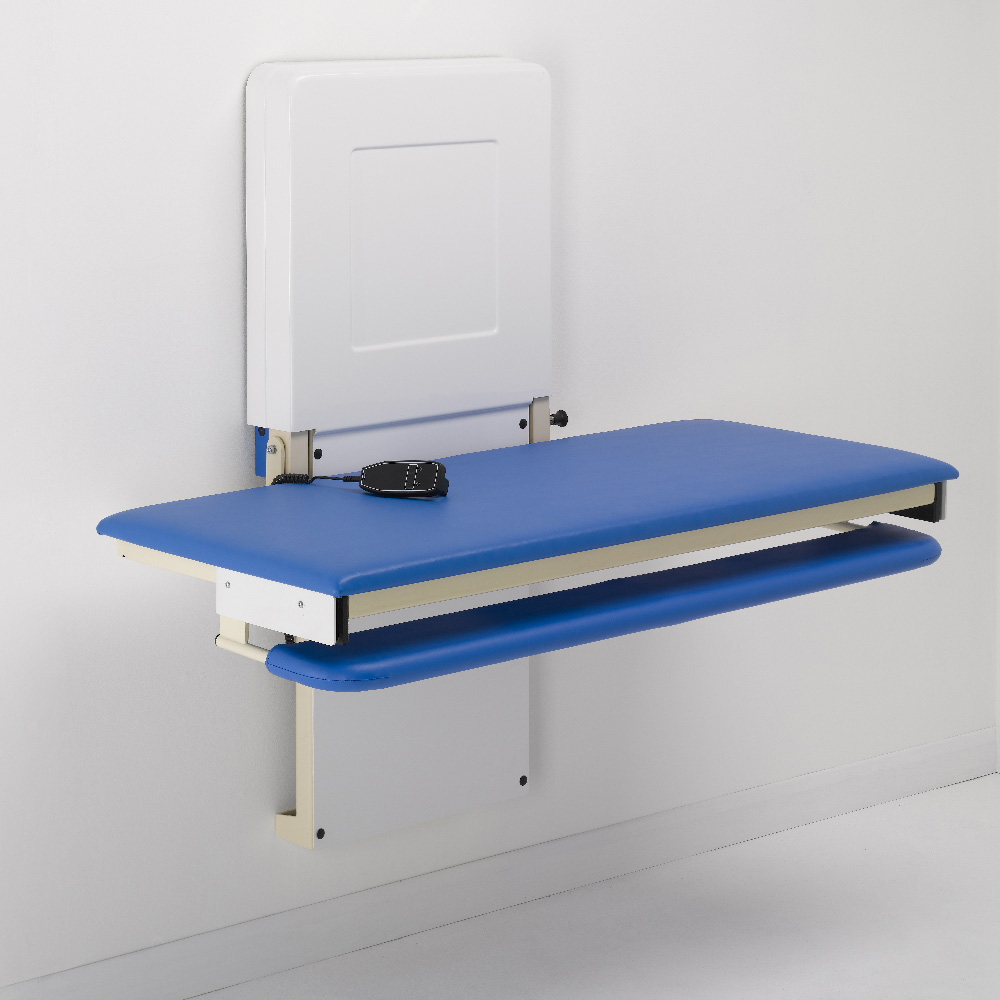

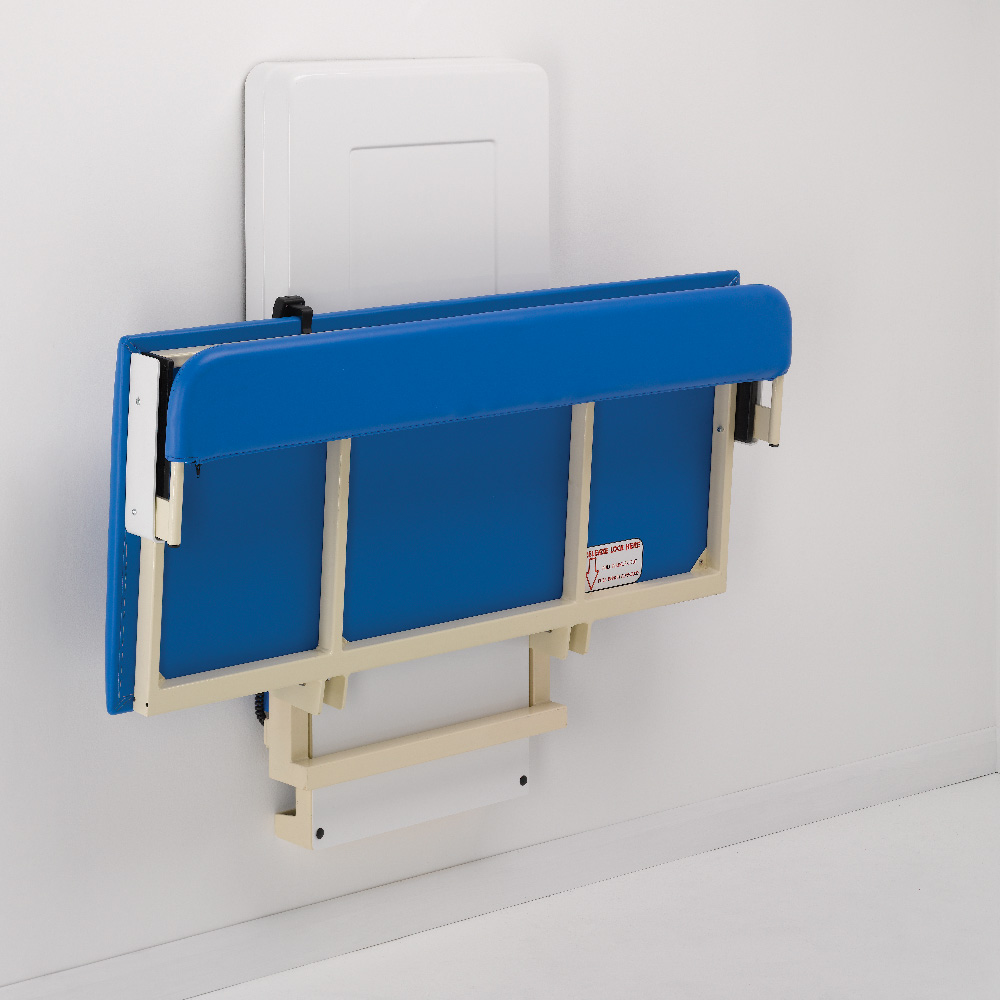

Easi-Lift Changing Bench is a compact, electrically operated wall-mounted changing bench designed to fit in a dry room environment where space is at a minimum, folding away to save space after use.
User Guides
Size Guide
| Measurement | Size 1 | Size 2 | Size 3 | Size 4 | Size 5 | Size 6 | Size 7 | Size 8 |
|---|---|---|---|---|---|---|---|---|
| Code | 3081 | 3082 | 3083 | 3084 | 3085 | 3086 | 3087 | 3088 |
| Table dimension length (inches) | 47.2 | 51.8 | 55.1 | 59.0 | 62.9 | 66.9 | 78.7 | 82.6 |
| Table dimension width (inches) | 21.6 | 21.6 | 23.6 | 23.6 | 25.5 | 25.5 | 25.5 | 25.5 |
| Table dimension width including safety rail (inches) | 34.4 | 34.4 | 36.4 | 36.4 | 38.3 | 38.4 | 38.4 | 38.4 |
| Travel height range (inches) | 17.7 - 37.4 | 17.7 - 37.4 | 17.7 - 37.4 | 17.7 - 37.4 | 17.7 - 37.4 | 17.7 - 37.4 | 17.7 - 37.4 | 17.7 - 37.4 |
| Wall frame width (inches) | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 |
| Wall frame depth (inches) | 4.3 | 4.3 | 4.3 | 4.3 | 4.3 | 4.3 | 4.3 | 4.3 |
| Wall frame height (inches) | 63.7 | 63.7 | 63.7 | 63.7 | 63.7 | 63.7 | 63.7 | 63.7 |
| Safety side height (inches) | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 |
| Stored width (inches) | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 |
| Max user weight (Ibs) | 330 | 330 | 330 | 330 | 330 | 330 | 330 | 330 |
| Product weight (Ibs) | 176 | 180 | 185 | 189 | 194 | 198 | 207 | 211 |
Gallery
Color Ranges
Just Colour range - vinyl
Just Colour range can be used on most products
-
Ocean Blue
Colours are a guide only and may vary due to limitations of the print process.
Material samples are available upon request. Colour range may change without prior notice, we try to colour match where possible.
