hi-riser changing bench
Price range: $7,702.00 through $12,453.00
Description

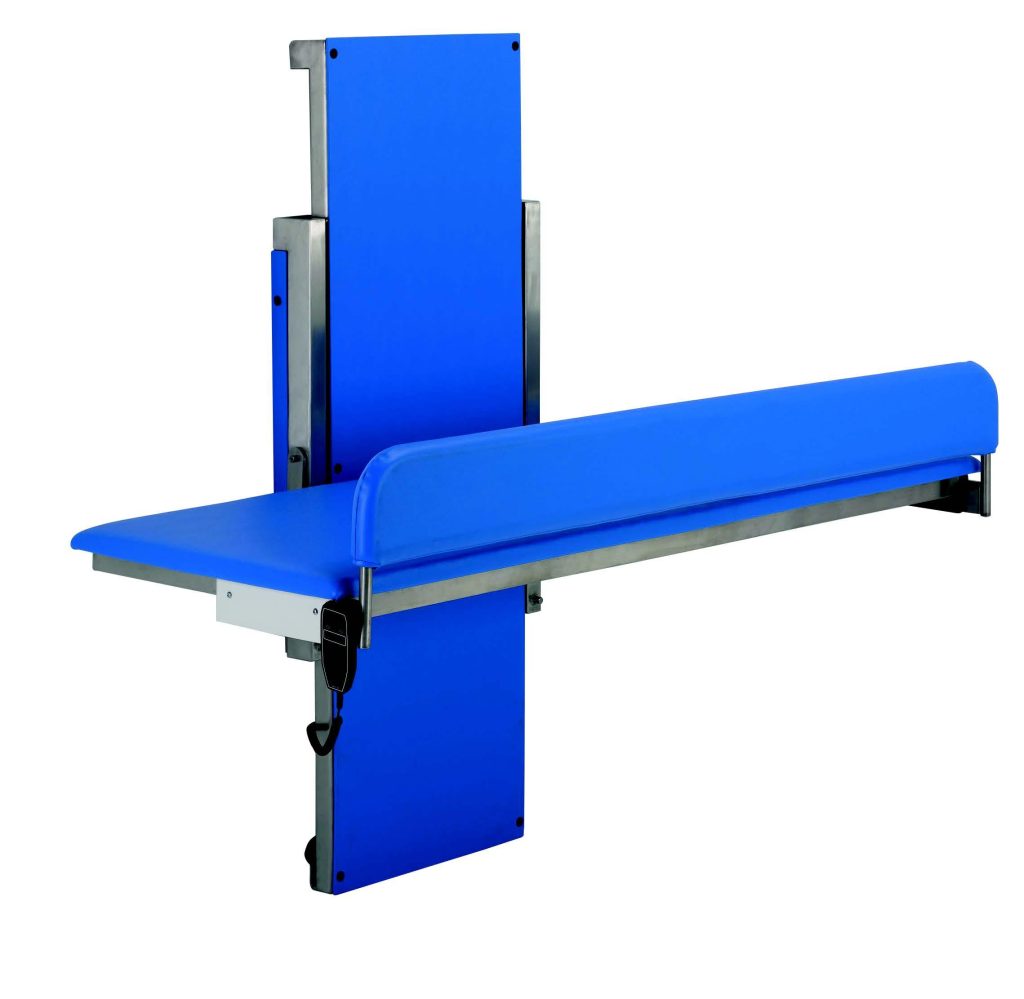

Hi-Riser is an electrically operated wall-mounted changing table that is suitable for children and adults of up to 440lbs. Despite its robust structure, the Hi-Riser has a slimline design that ensures it fits easily into most environments.

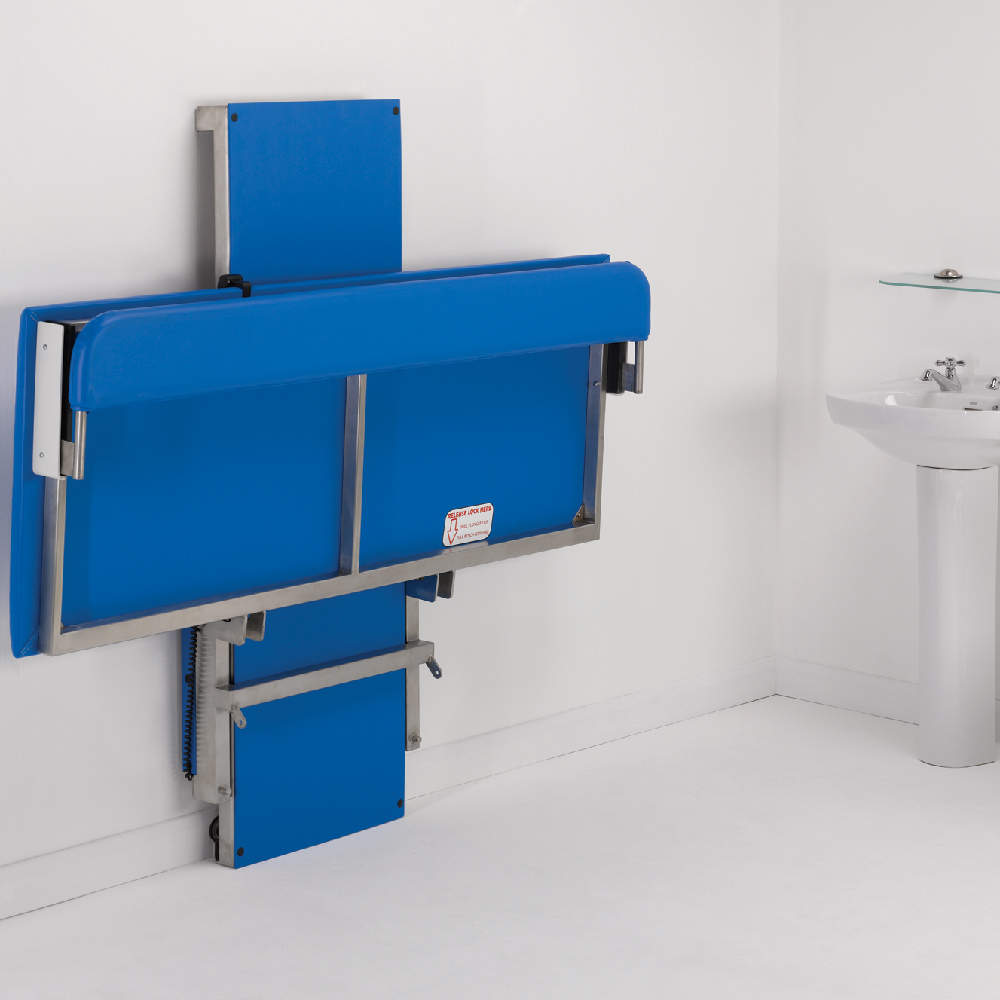

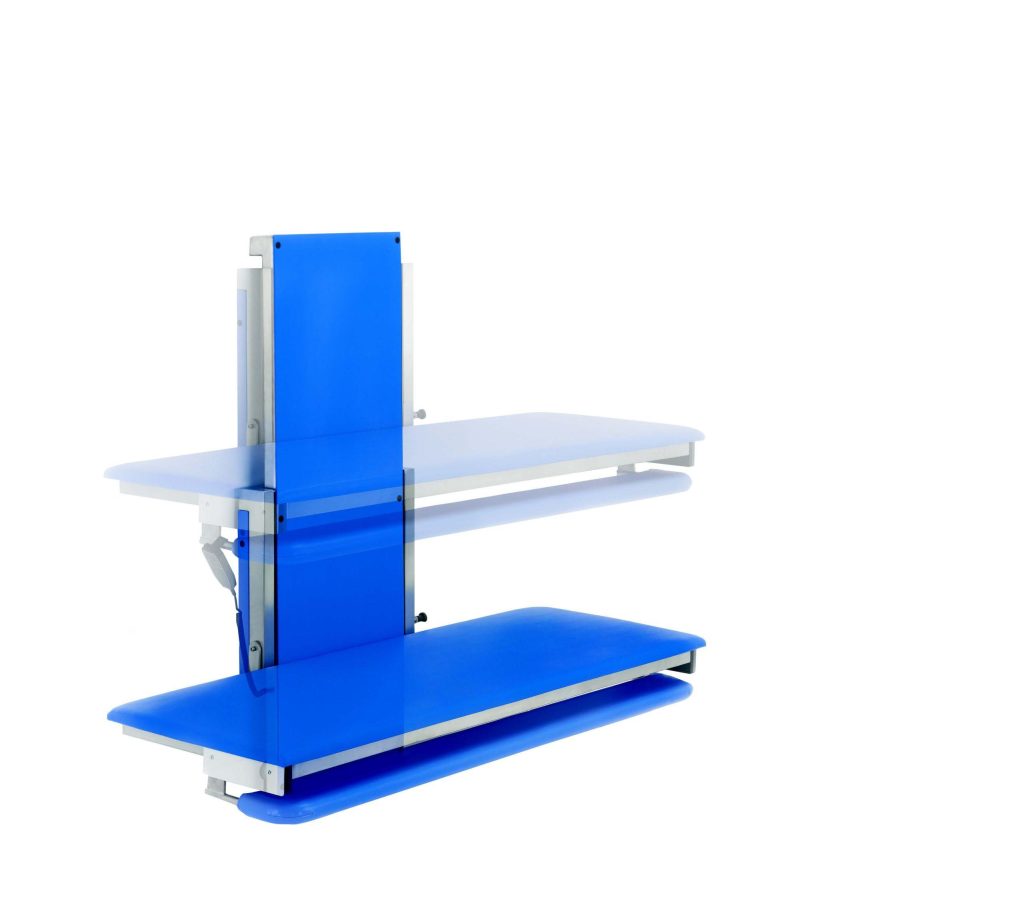

The Hi-Riser has been designed so that it can be used with most mobile or ceiling hoists. The unique safety side rail stows away, streamlining access for transfers from a wheelchair, shower and toileting chair. The Hi-Riser also benefits from an impressive travel range..
We understand that every need is different, which is why the Hi-riser comes in different sizes that cater from young children through to adults. The Hi-Riser comes in a cream powder coated frame for dry environments.
Videos
Size Guide
Measurement | Size 1 | Size 2 | Size 3 | Size 4 | Size 5 | Size 6 | Size 7 | Size 8 | Size 9 |
---|---|---|---|---|---|---|---|---|---|
Code for mild steel powder coated | 3041 | 3042 | 3043 | 3044 | 3045 | 3046 | 3047 | 3048 | 3049 |
Code for stainless steel | 3051 | 3052 | 3053 | 3054 | 3055 | 3056 | 3057 | 3058 | 3059 |
Table dimension length (inches) | 47.2 | 51.1 | 55.1 | 59 | 62.9 | 66.9 | 70.8 | 78.7 | 82.6 |
Table dimension width (inches) | 55.1 | 21.6 | 23.6 | 23.6 | 25.6 | 25.6 | 25.6 | 25.5 | 25.6 |
Table dimension with with safety guard (inches) | 34.4 | 34.4 | 36.4 | 38.4 | 38.4 | 38.4 | 38.4 | 38.4 | 38.4 |
Travel range (inches) | 15.7 - 39.4 | 15.7 - 39.4 | 15.7 - 39.4 | 15.7 - 39.4 | 15.7 - 39.4 | 15.7 - 39.4 | 15.7 - 39.4 | 15.7 - 39.4 | 15.7 - 39.4 |
Wall frame width (inches) | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 |
Wall frame depth (inches) | 4.3 | 4.3 | 4.3 | 4.3 | 4.3 | 4.3 | 4.3 | 4.3 | 4.3 |
Wall frame height (inches) | 61.0 | 61.0 | 61.0 | 61.0 | 61.0 | 61.0 | 61.0 | 61.0 | 61.0 |
Safety guard height (inches) | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 |
Stored width (inches) | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
Max user weight (Ibs) | 440 | 440 | 440 | 440 | 440 | 440 | 440 | 440 | 440 |
Product weight (Ibs) | 176 | 180 | 185 | 189 | 194 | 198 | 202 | 207 | 212 |
